BB5000 LINE BORING MACHINE

Product Specifications

Bar Diameter:
2.25 inches (57.2 mm)
1.25 inches (31.8 mm) optional

Boring Diameter:
1.5 – 24 inches (38.1 – 609.6 mm)

Max. Stroke:
36 inches (914.4 mm)

Torque at Bar:
417 ft-lb hydraulic (565.4 N•m)

Power Options:
Electric, Pneumatic, or Hydrauli

Product Advantages

Quick and Easy Setup

Modular components make setup quick and easy.

Fast and easy setup using high quality cast-iron set-up cones and spherical bearing mounts.

Patented spherical bearing mounting system allows quick setup, with up to 5° of bearing misalignment.

Typical set-up time for an experienced operator is 30 minutes or less.

Powerful

Up to 650 ft-lbs (881 N·m) of torque at the bar – more than any other portable boring machine in its boring range.

Specially-designed rotational drive unit provides 4:1 or optional 12:1 or worm gear reduction for increased torque at all speeds

Flexible, High Quality Design

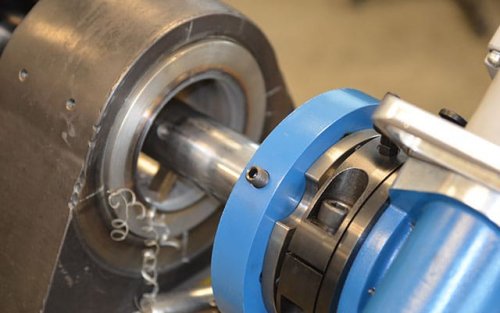

Through-bar design allows the rotational drive and feed unit to be mounted anywhere along the bar, even separately.

Patented heavy-duty spherical bearing mounts ensure rigid attachment to the work piece, for more effective machining.

Versatile

Highly customizable to meet a variety of needs.

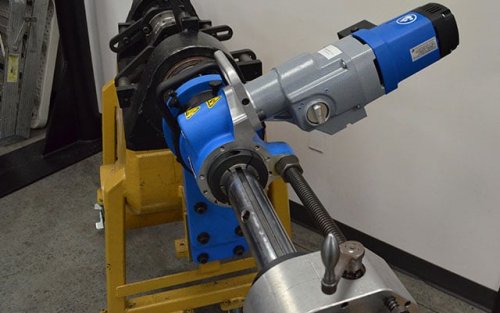

Available in electric, servo, hydraulic, or pneumatic motor configurations.

Reversible electric motor.

Fast, easy two-bolt change-out process to switch motors.

Available in a variety of bar lengths, from 4 – 24 feet (1219.2 – 7315.2 mm).

Bars are straightened, and have ½ inch or 12 mm square-broached tooling holes.

Accessories allow the BB5000 to be used for blind boring, line boring, drilling, facing, and valve repair.

An interface kit allows attachment and quick alignment of the CLIMAX Auto Bore Welders for efficient bore welding.

Compact

Extremely compact for ease of use in cramped, tight work spaces.

Drive & Feed can be mounted between bearings for use in even more confined spaces.
