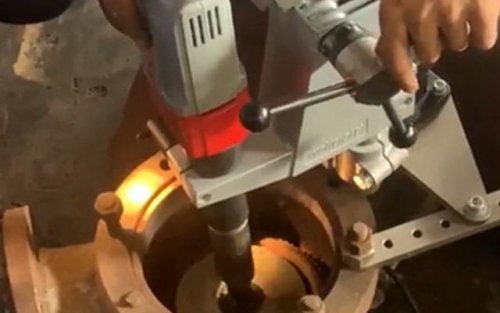

A series of nine rugged yet compact configurations designed for fast, precise grinding and lapping of globe valves with flat or conical seats. All models offer a range of diameter configurations and the ability to easily and quickly change and adjust grinding pressure during operation.
| Model | Working Range | Submerging Depth | Valve Type | Power Options |
|---|---|---|---|---|
| VM2050C | 0.4 – 2 in. (10 – 50 mm) |
10 in. (250 mm) |
Globe (conical seats) |
Electric Pneumatic |
| VM2100C | 0.4 – 4 in. (10 – 100 mm) |
10 in. (250 mm) |
Globe (conical seats) |
Electric Pneumatic |
| VM2150C | 0.4 – 6 in. (10 – 150 mm) |
18 in. (450 mm) |
Globe (conical seats) | Electric Pneumatic |
| VM2150 | DN3/8 – DN6 in. (DN10 – DN150 mm) |
20 in. (500 mm) |
Globe (Flat Seats) or Safety | Electric Pneumatic |
| VM2150SV | 0.4 – 6 in. (10 – 150 mm) |
20 in. (500 mm) |
Globe (Flat Seats) or Safety | Electric Pneumatic |
| VM2150SLV |
0.4 – 6 in. |
20 in. (500 mm) |
Globe (Flat Seats) | Electric Pneumatic |
| VM2350 |
3 – 14 in. |
24 in. (600 mm) |
Globe (Flat Seats) | Electric Pneumatic |
| VM2500 | 3 – 20 in. (80 – 500 mm) |
31 in. (800 mm) |
Globe (Flat Seats) | Electric Pneumatic |
| VM2600 | 3 – 24 in. (80 – 600 mm) |
31 in. (800 mm) |
Globe (Flat Seats) | Electric Pneumatic |
QUICK AND EASY SETUP
Quickly change over between electric and pneumatic by simply loosening a single clamping bolt.
Media discs with adhesive specifically formulated to provide a firm hold while in use but are easy to remove after use.

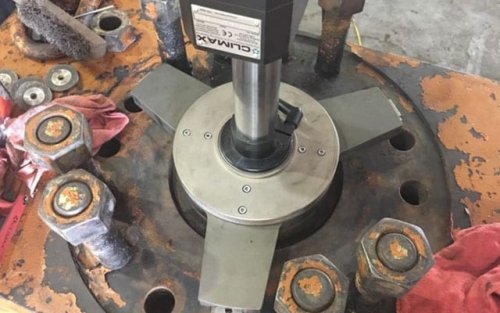

Three jaw chuck and adapters for mounting on the ID or OD of the valve body or studs.
RIGID
Thick planet wheels and webbed design provides increased rigidity, allowing consistent flatness regardless of grinding pressure.
VERSATILE
Five valve grinding disks to ensure constant contact with the seat, which allows you to grind perfectly flat.
Planet arm bearings are sealed, preloaded and preset to be within 0.000079 inches (0.002mm) of each other on a flat plane.
Complete set of diameters and grit of abrasives (800 – 1200 pieces) are included with all valve machines.
Submerging depths up to 31-inches (800 mm) on the standard machines.
Seat diameter sizes 0.4 to 24 inches (10 – 600 mm).
SAFETY
CE certified and available worldwide! All valve grinding and lapping machines are available for sale worldwide, including in the European Union and other locations where CE certification is required.
